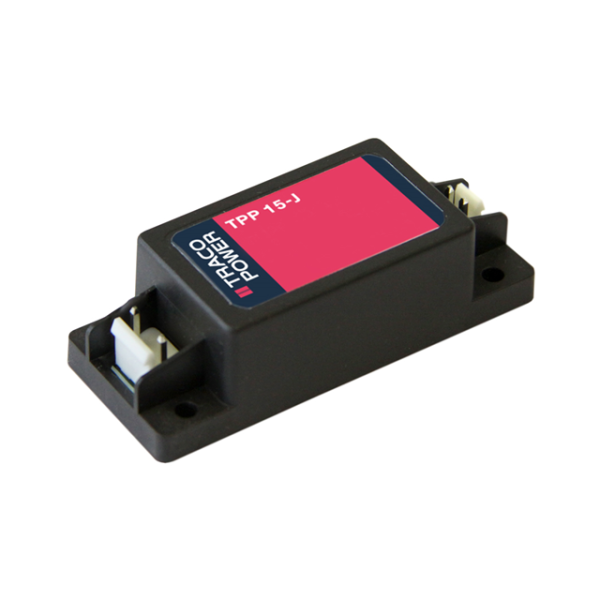

TracoPower TPP 15-105-J Schaltnetzteil 5 V/DC 3 A 15 W

Artikelnummer: TPP 15-105-J
EAN: 4053199934959
HAN: TPP 15-105-J
Hersteller: Tracopower

15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced

59,50 €

inkl. 19% USt. , zzgl.

95 Auf Lager
Lieferzeit: 2 - 3 Werktage (DE - Ausland abweichend)

Beschreibung

The TPP 15-J AC/DC power supplies feature a reinforced double I/O isolation system according to medical safety standards IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP approved for an operating altitude of 5000 m. The earth leakage current is below 100 µA what makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 88.5% offers a high power density in the packaging format 1.1” x 2.8”. The full load operating temperature range covers –40°C to +70°C while it goes up to 85°C with 50% load derating. The units operate in compliance to the medical EMC emission and immunity levels according to latest standard IEC 60601-1-2 4th edition.

Attribute

Value

Output Voltage

5 VDC

Output Current

3000 mA

Power Rating

15 W

Number of Outputs

single

Input Voltage

85-264 VAC / 120-370 VDC

Housing Type

Plastic Case

Mounting Type

Chassis Mount

Connection Type

Pin Connector

Length

71.7 mm

Width

28.9 mm

Depth

20.9 mm

Efficiency

86 %

Maximum Temperature

85 °C

Minimum Temperature

-40 °C

Weight

48 g

Ripple and Noise

40 mVp-p typ.

Capacitive Load

4000 µF

Remote On/Off

Safety Approvals

EN 62368-1, EN 60601-1, EN 60335-1

Insulation System

Reinforced Insulation

I/O Isolation Voltage

4000 VAC

Angaben zur Produktsicherheit

Herstellerinformationen:

Tracopower

, ,

Produkteigenschaft	Wert
Artikelgewicht:	0,05 kg
Abmessungen ( Länge × Breite × Höhe ):	7,17 × 2,89 × 2,09 cm
